Vivaldi antenna

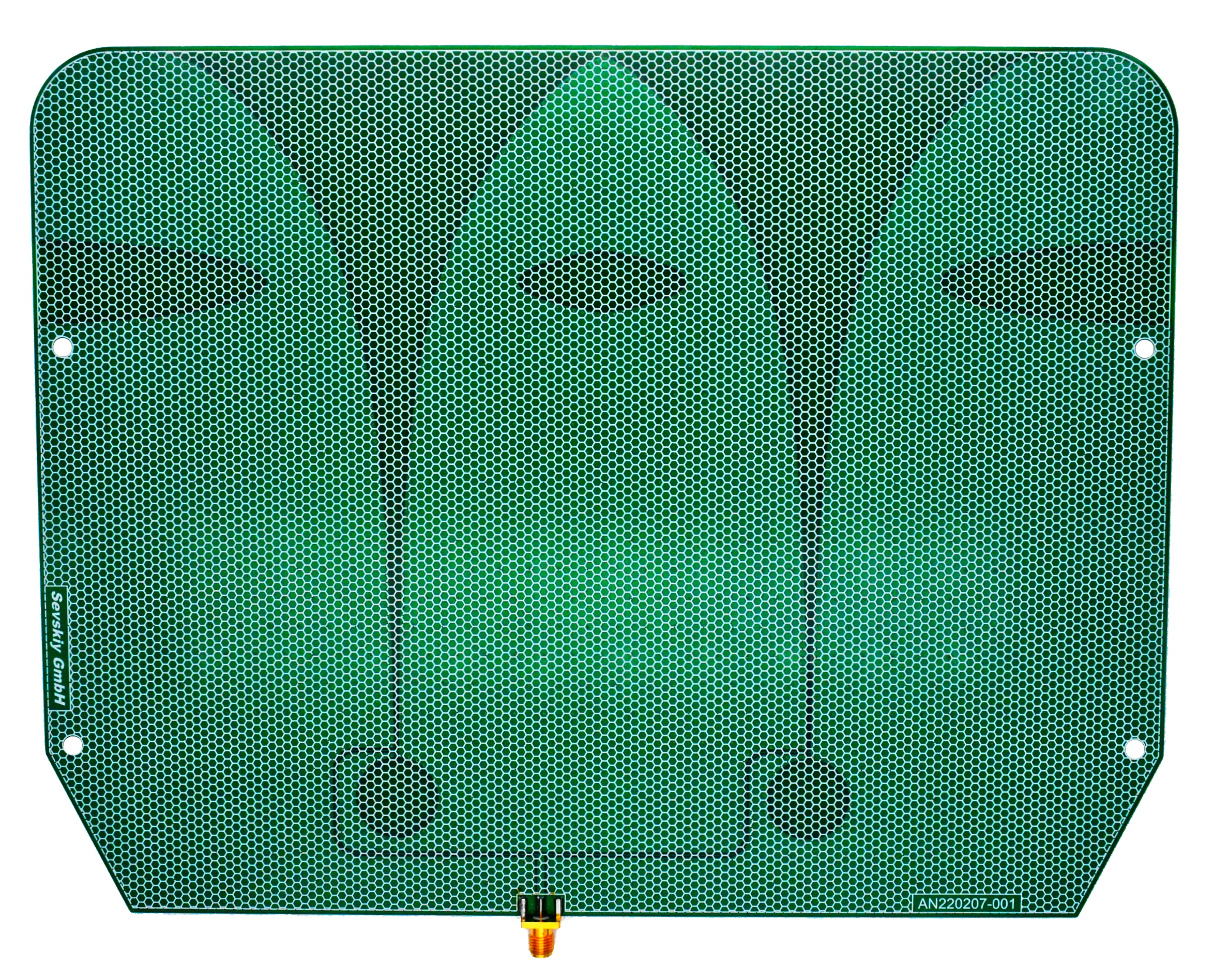

AN220207-001
Vivaldi array in the E-plane. The array configuration increases gain and directivity over the single element.
There is no checkout on this website. DigiKey opens as an external webshop.
TECHNICAL OVERVIEW
Information for product selection.
Our PDF catalogue provides information on the product family. The current data sheet governs the specific version. Different cable lengths have separate part numbers.
- Manufacturer part number
- AN220207-001
- Product family
- AN220207
- Frequency / function
- 0.7–9.0 GHz
- Wireless standards (family)
- Cellular 2G–5G, Wi-Fi 2.4 / 5 / 6 and Bluetooth, ISM and SRD bands (LoRa, Sigfox), GNSS, UWB
- Dimensions (family)
- 272.5 × 210.0 × 1.6 mm
Does this variant fit your system?
We review the installation environment, connection and required RF performance, and discuss customisation with you.
