Antennas / PDF catalogue: page 38.

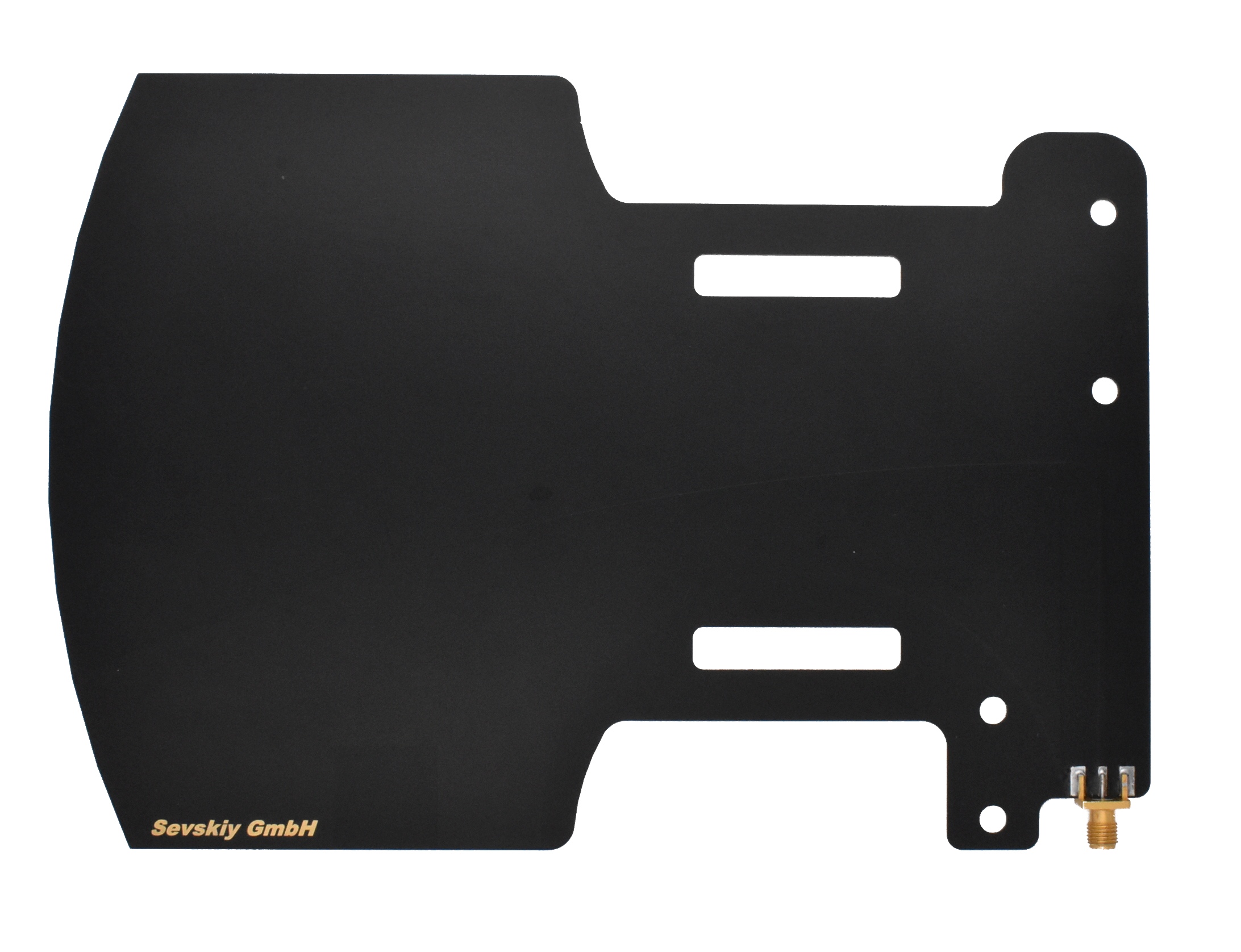

Vivaldi antenna
AN220202-01A
Planar ultra-wideband Vivaldi antenna for laboratory measurement, spectrum monitoring, remote sensing and control.
There is no checkout on this website. DigiKey opens as an external webshop.
TECHNICAL OVERVIEW
Information for product selection.
Our PDF catalogue provides information on the product family. The current data sheet governs the specific version. Different cable lengths have separate part numbers.
- Manufacturer part number
- AN220202-01A
- Product family
- AN220202
- Frequency / function
- 1.2–9.0 GHz
- Wireless standards (family)
- Cellular 2G–5G, Wi-Fi 2.4 / 5 / 6 and Bluetooth, GNSS, UWB
- Dimensions (family)
- 213.0 × 150.0 × 1 mm
Does this variant fit your system?
We review the installation environment, connection and required RF performance, and discuss customisation with you.
