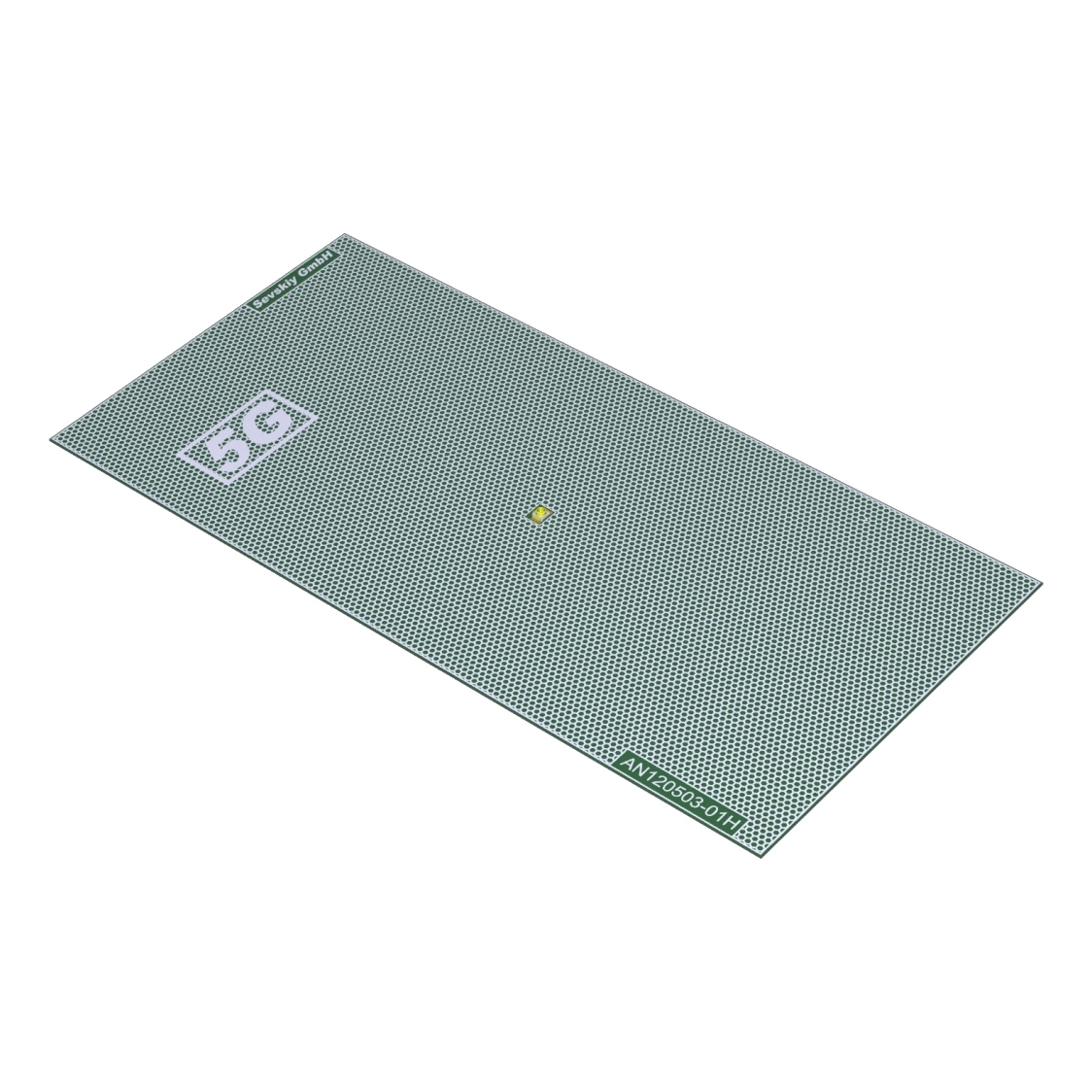

Wideband UWB dipole
AN120503-01H
Symmetrical dipole with true multi-standard behaviour in a single part, from 5G NR down to legacy cellular generations.
There is no checkout on this website. DigiKey opens as an external webshop.
TECHNICAL OVERVIEW
Information for product selection.
Our PDF catalogue provides information on the product family. The current data sheet governs the specific version. Different cable lengths have separate part numbers.
- Manufacturer part number
- AN120503-01H
- Product family
- AN120503
- Frequency / function
- 0.6–7.125 GHz
- Wireless standards (family)
- Cellular 2G–5G, Wi-Fi 2.4 / 5 / 6 and Bluetooth, ISM and SRD bands (LoRa, Sigfox), GNSS
- Dimensions (family)
- 174.5 × 86.3 × 0.8 mm
Does this variant fit your system?
We review the installation environment, connection and required RF performance, and discuss customisation with you.
Send a product enquiry ↗PDF CATALOGUE
